D Spacing Calculation Hkl

A web based program identified by the clickable icon is provided here to demonstrate the calculation of hkl values and d spacings.

D spacing calculation hkl. Interplanar spacing of cubic lattice calculator. Raw html 2 theta i n t e n s i t y 20 25 30 35 40 45 0 1000 2000 3000 4000 5000 step2. Cubic lattices have one distinct side meaning it will be cubical which are termed as a. Other way you can pick the 2 theta value for each peak and use bragg s law to calculate d spacing.

λ 2dsin ɵ where λ is the wavelength of the x ray beam 0 154nm d is the distance between the adjacent go sheets or layers ɵ is the diffraction angle. D hkl spacing that we obtained from the xrd data. Now zoom on the area for which you want to calculate the d value and note down the angle at which peak is shown. Calculation of the spacing between graphene oxide sheets it can be calculated by the bragg s law.

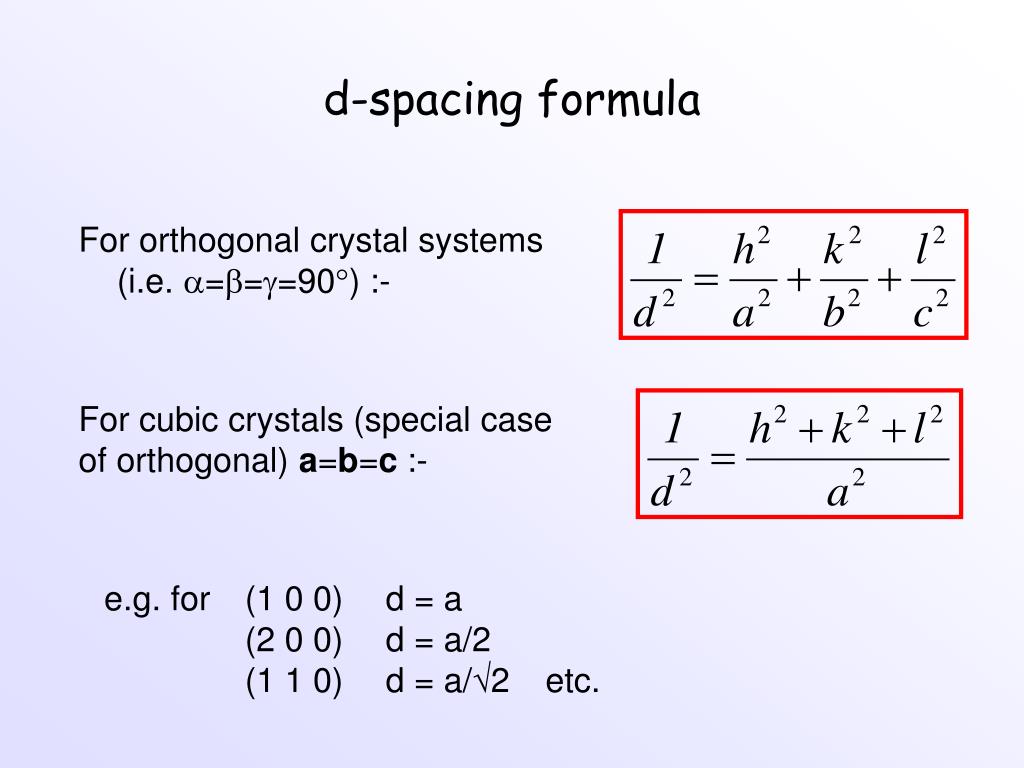

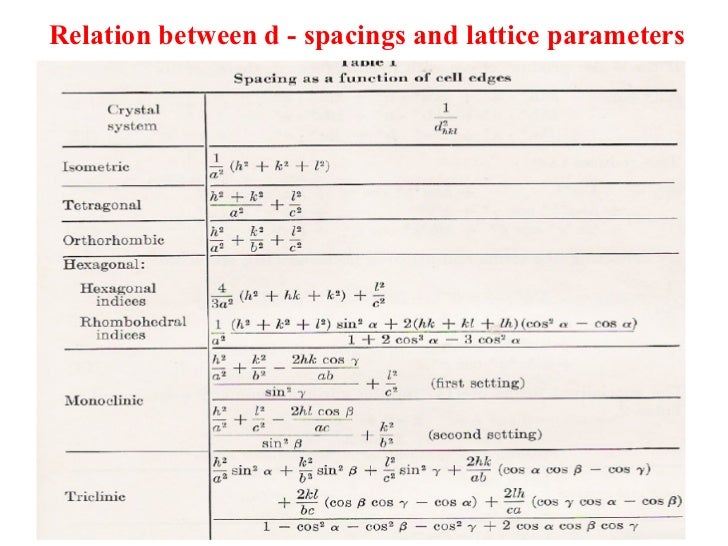

Use the d spacing formula and find out the hkl values that correspond to the five largest d spacings of a cubic crystal with a unit cell parameter of a 5 00 å. It is frequently very useful in the analysis of powder diffraction data to be able to calculate a set of hkl values d spacings and equivalent 2θ values from a bravais lattice of given unit cell dimensions. The normal to the plane with indices hkl is the direction hkl. When x rays are applied to a crystal it gets scattered.

Interplanar spacing of cubic lattice calculator. At this instance bragg s law correlates the angle of incidence with the lattice spacing and the wavelength of the incident x ray. You can use the powderx software to calculate d spacing lattice parameters etc. And with the help of two peaks of xrd you can calculate h k l values.

Further consider a monochromatic x ray beam of wavelength having a common wave front falls at an angle on the planes as shown in figure. The angle of incidence is adjusted so that the scattered intensity of the x ray is maximum. The distance d between adjacent planes of a set of parallel planes of the indices h k i is given by where a is the edge of the cube. Open the xrd graph of the material which is obtained from the instrument.

A lattice constant. H k l miller indices. Each atom scatter the x rays more or less uniformly in all directions but because of the periodic arrangement of. Generation of hkl d and 2θ values.

Raw html 2 theta i n t e n s i t y 20 25 30 35 40 45 0 1000 2000 3000 4000 5000 31 8 step3.
